How to start the ATRIUM software

This section describes how to start the ATRIUM software.
If you need to learn how to install or update the ATRIUM software, see this article.

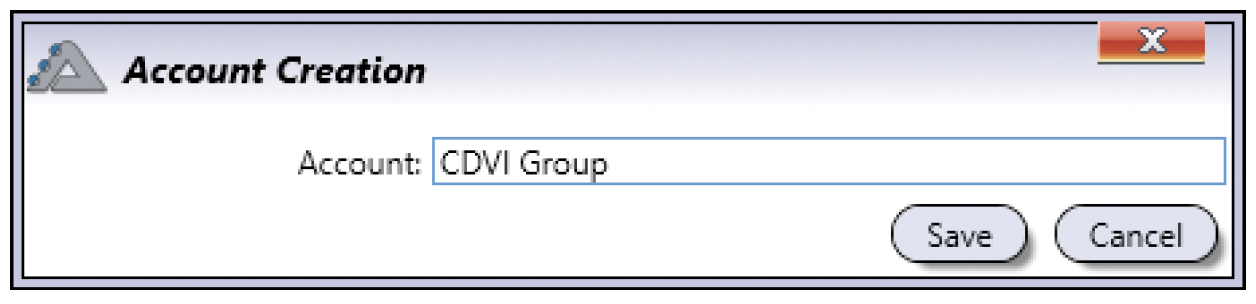

  1. Double-click the ATRIUM icon on your desktop or click Start >Programs >CDVI Group >ATRIUM. The first time you start the ATRIUM software, the Account Creation window will be displayed.

  1. Type the name of the new account and click Save.

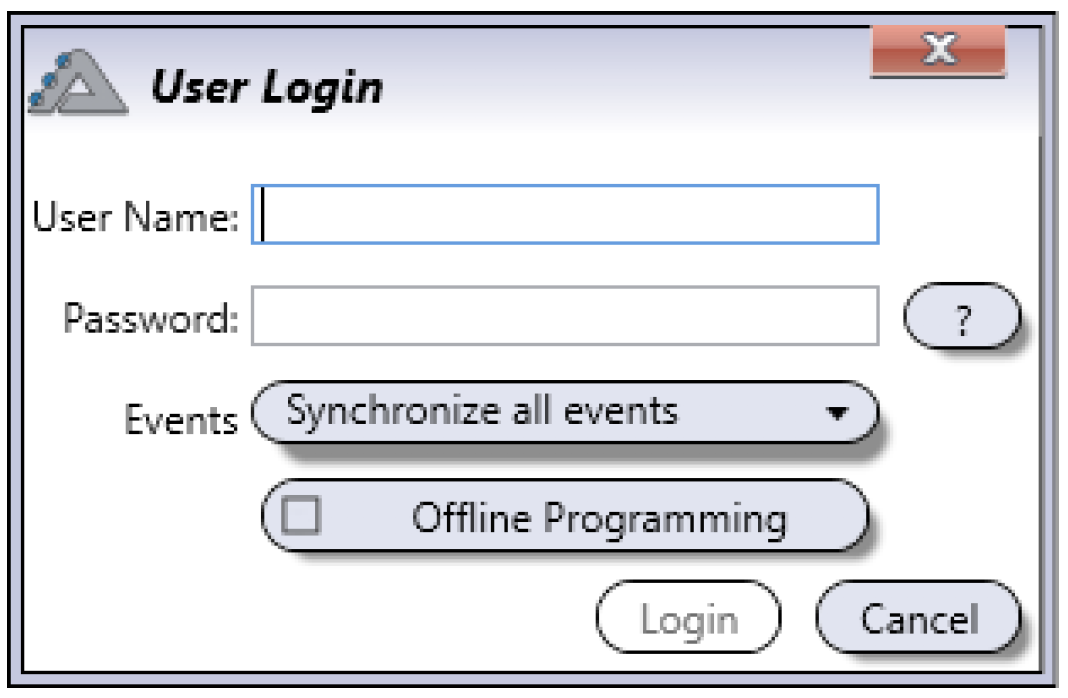

  2. The ATRIUM software User Login window will be displayed. Type the Login ID and password for the selected account. The default login ID and password is admin. You can also choose to synchronise the events from the A22 controller or not to. Events do not hold any database configuration.



Once you have created your account with the default login ID and password. It is strongly recommended that you change the login ID and password for security reasons. Read this article for information on how to manage passwords.

      4. Click on User Logins.
