Introduction

Integrating elevator control into ATRIUM allows you to manage up to 256 floors per account. To do this, convert your main A22 to an A22-EC, or add an A22 as a subcontroller (see this article), then convert it into an A22-EC (see Converting an A22 section in this article).

Each A22-EC adds two cabs and can manage up to 128 floors (64 floors per cab). Up to 49 A22-ECs can be added if more cabs are needed, but the total floors they manage cannot exceed 256.

Each A22-EC can have up to eight CAA-480As connected to it in a daisy-chain formation through the RS485 Local Bus. An A22-EC with eight CA-A480-As controls 128 floors.

Elevator integration requires version 4 or above of the ATRIUM software and firmware.

Wiring Overview

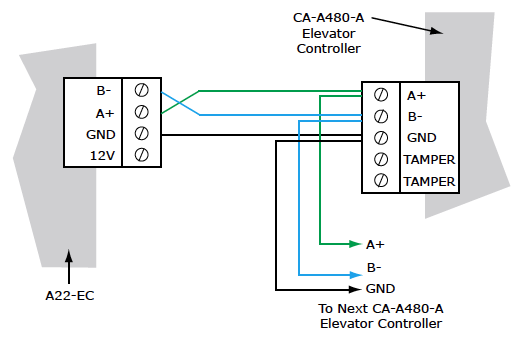

The daisy-chain wiring from an A22-EC to a CAA-480A, to the next CAA-480A (if used) is shown below.

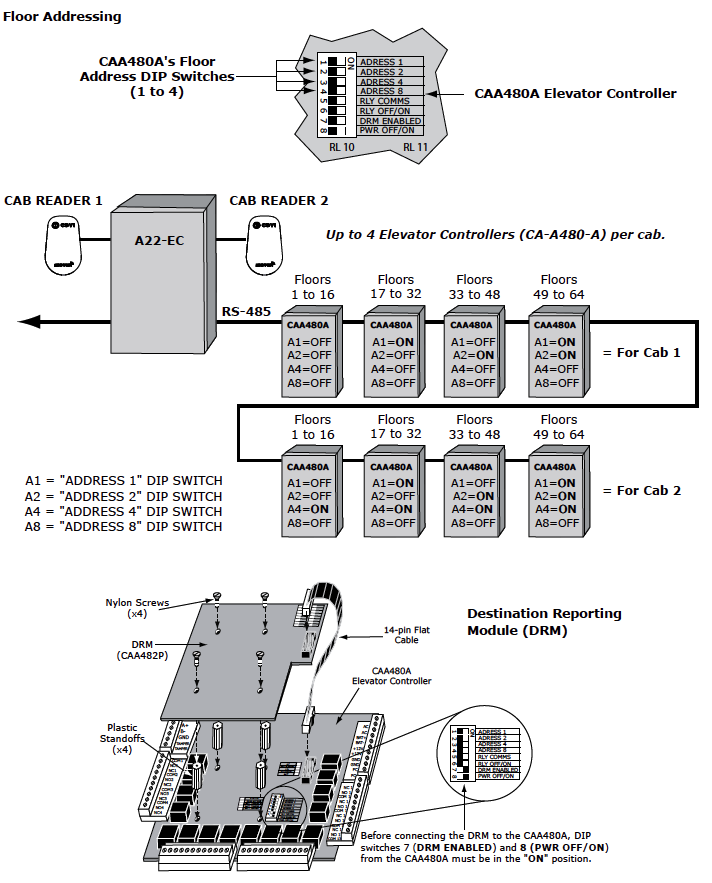

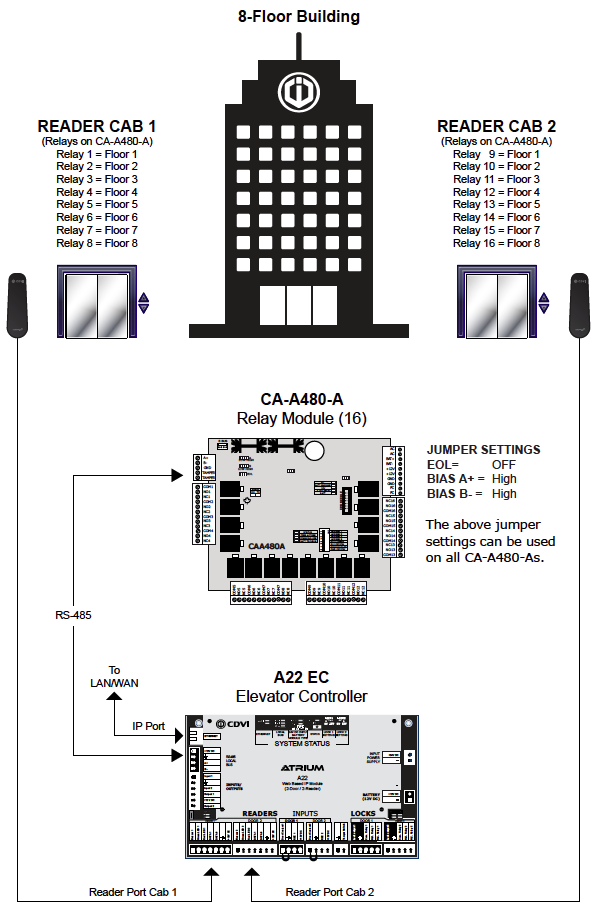

The diagram below shows the connection of the A22-EC to a CAA-480A and the cab readers and floors that they manage. It also shows the jumper settings that can be used across all CAA-480As.

The dipswitch settings for floor addressing and the DRM connection diagram are also shown below. For more information on specific settings, consult the CAA-480A manual.







Converting an A22 into an A22-EC

First, download the A22-EC firmware files either by visiting the CDVI website or by getting in touch with our Tech Support team.

The steps below show conversion of an A22 subcontroller. To convert a main controller, select it and continue with the steps below.

In the ATRIUM software, select the A22 from the Sub-Controllers menu and click on Upload Firmware.

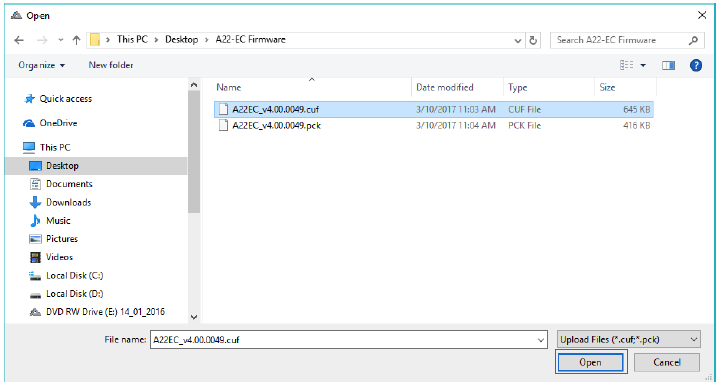

Locate and ppen the A22-EC.cuf firmware file.
The A22-EC.cuf file must be loaded before the .pck file.



When the firmware has finished loading, click Install.

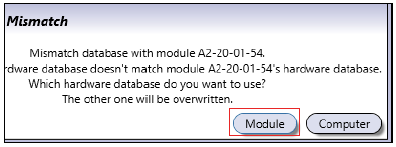

The A22 will go offline and reboot. When it synchronises, select Module on the Database Mismatch window.

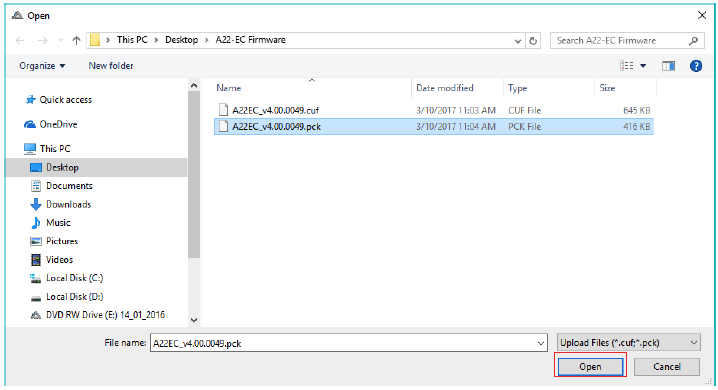

Open and install the A22-EC.pck firmware file using the same previous steps.

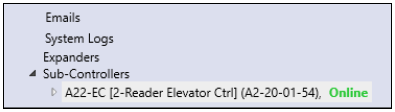

This Sub-Controller will now be listed as an A22-EC.

Floors

Floors can be located within the same building or distributed between different buildings. The total number of Floors in the account will be listed from 1 to a maximum of 256. If any Floors are located in other buildings, you can rename the Floors to make finding them clearer (ex. Building B - Floor 1). Once floors are added you can also find a floor by typing its name into the Find box.

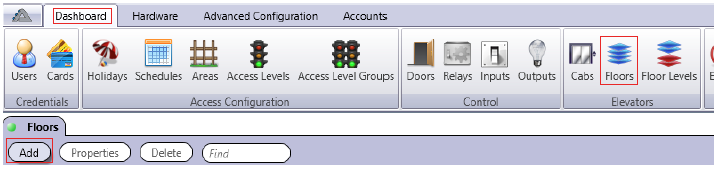

From the Dashboard tab, click on Floors, then Add to open the Floor Properties menu and add a new floor.

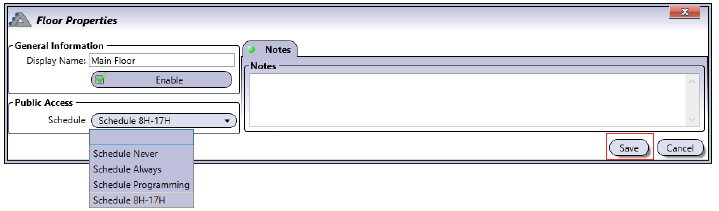

Floor Properties: General Information, Public Access, and Notes can be modified here. Click Save to keep any changes.



  1. Display Name: Create a display name for the floor.
  2. Enabled: Enable (checked) or Disable (unchecked) the floor.
  3. Public Access: Select a schedule for the floor to specify when users have free access to the floor without requiring a Floor Level assigned to them. For more information on specific schedules, see this article.
  4. Notes (tab): Click anywhere inside the box to add notes.

Cabs

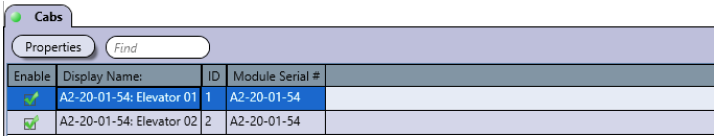

From the Dashboard tab, click on Cabs, then select a cab and click on Properties to open the Cab Properties menu. Each A22-EC adds two elevator cabs.

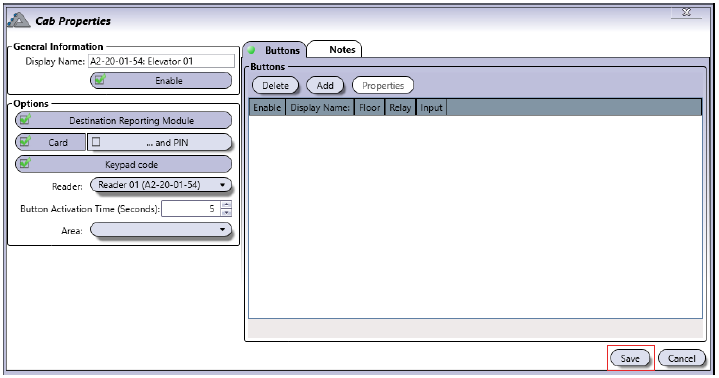

Cab Properties: General Information, Options, Notes and Buttons can be modified here. Click Save to keep any changes.



  1. Display Name: Rename the floor cab.
  2. Enable: Enable (checked) or Disable (unchecked) the cab.
  3. Destination Reporting Module: Enable (checked) or Disable (unchecked) an optional CAA-482P Destination Reporting Module, also known as a DRM.
Without a DRM, when a User presents their card at the cab reader for access, every floor the user has access to is enabled for the default activation time of 5 seconds. The controller will register the Access Granted event but will not know which floor(s) the User accessed.

With a DRM, the controller registers which User accessed the elevator and which floor was accessed. Destination Reporting only allows one floor selection to be made per presentation of the card.
  1. Card, PIN and Keypad Code: If Card or Keypad Code are checked off, the User can have access granted using either option. If ...and PIN is selected, the User will need to present a card and put in a PIN (also known as a keypad code).
  2. Reader: Select a different cab reader here if needed.
  3. Button Activation Time: Modify the elevator button activation time from 1 to 254 seconds.
  4. Area: Set the Area associated to the cab reader.
  5. Notes (tab): Click anywhere inside the box to add notes.

Buttons

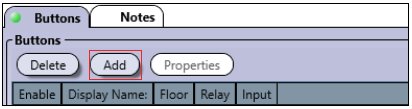

Click on the Buttons tab then Add to enter the Button Properties menu.

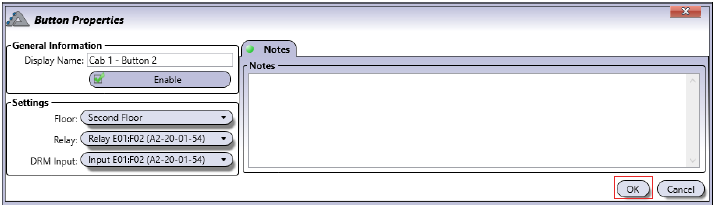

Create a name then select the Floor, Relay, and (optional) DRM Input for this elevator button. Click anywhere inside the Notes box to add a note. Click OK to save.

The Relay and DRM Input names will match up if they are wired in order. (Ex. Relay E01:F01 will correspond with DRM Input E01:F01.)

Floor Levels

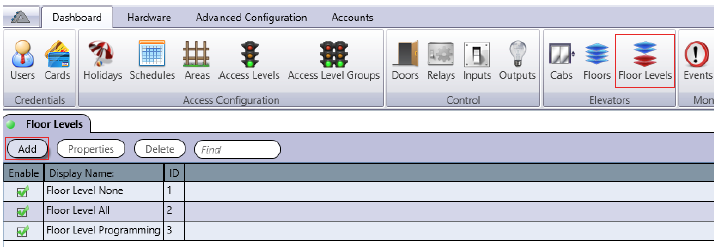

Floor Levels function like Access Levels (see this article for more information) except that they apply to an entire floor instead of applying to an Area. From the Dashboard tab, click on Floor Levels to view them.


There are three default Floor Levels:
  1. Floor Level None: This floor level has Schedule Never, so there is no access to any floors assigned to it. This can be modified.
  2. Floor Level All: This floor level has Schedule Always, so there is access to every floor assigned to it 24 hours a day, 365 days per year including any programmed Holidays. This can be modified.
  3. Access Level Programming: This floor level has the Learning Mode schedule, so there is access to every floor assigned to it 24 hours a day, 365 days per year including any programmed Holidays. This can be modified.

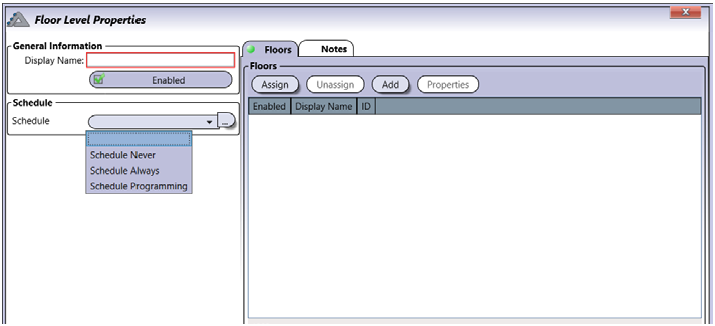

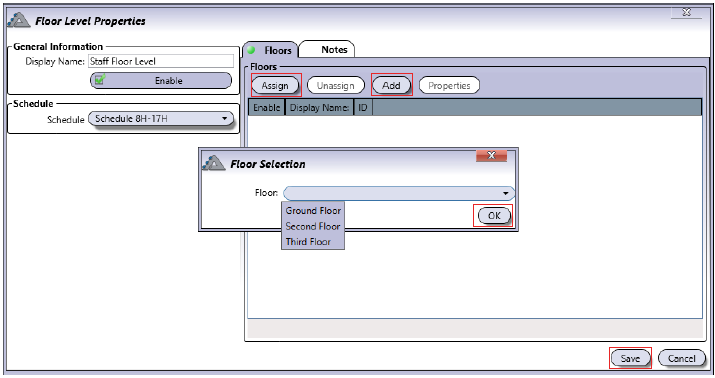

Click on Add to enter the Floor Level Properties menu.


  1. Display Name: Create a display name for the floor level.
  2. Enabled: Enable (checked) or disable (unchecked) the floor level.
  3. Schedule: Select a schedule for the floor level to specify when users have access to floors.
  4. Floors: Assign or add floors to specify which floors this floor level has access to. Click OK after each selection.

  1. Notes (tab): Click anywhere inside the box to add notes.
Click Save to keep your changes.

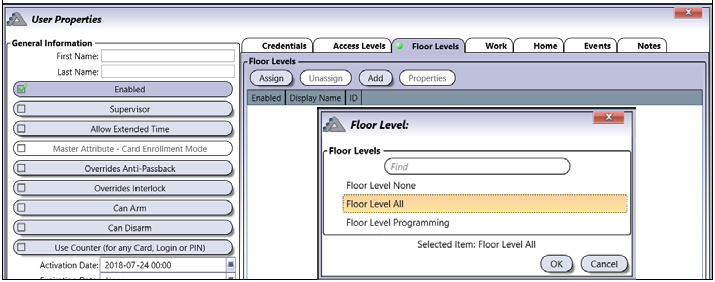

You can now Assign or Add Floor Levels to a User from the User Properties menu (see this article for more information).



Next, understand the lockdown function in ATRIUM and how to use it.
