Configuring tamper switches in the ATRIUM software
Introduction
Tamper switches detect when a controller cabinet door is opened or when the cabinet is removed from the wall.
Each controller and expander may have 2 tamper switches per cabinet: a wall and a door tamper switch. However, even when both are installed, only one tamper instance is monitored by the ATRIUM software per module box since they are connected in series.

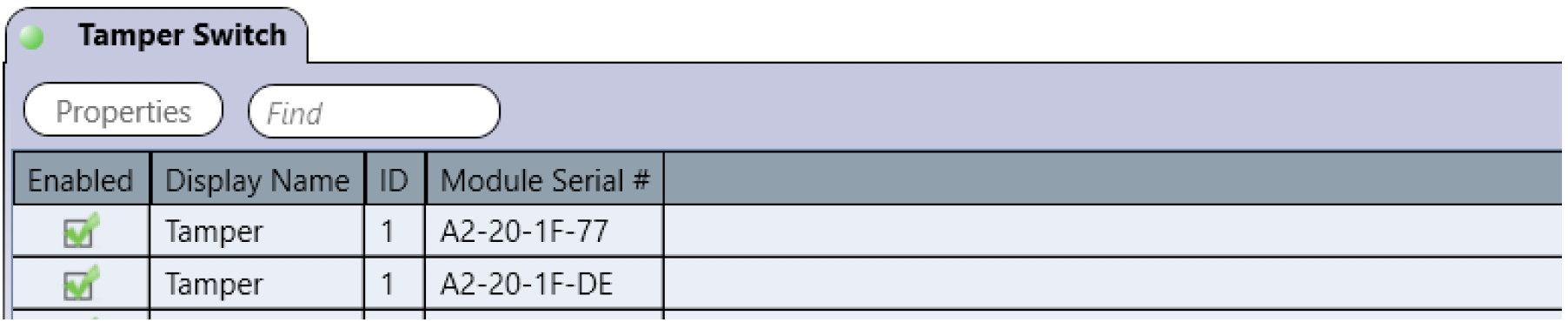

From the Hardware tab, click on the Tamper Switch icon.
Modifying the Tamper Switch
From the Hardware tab, click on the Tamper Switch icon, select the tamper switch from the list and click on the Properties button.
General Information
- Display Name: Identifies the tamper switch throughout the ATRIUM software. We recommend using a name that is representative of the tamper switch.
- Enabled: When selected, activates the usage of this tamper switch.
Notes Tab
Use the Notes text field to record any additional notes that may be required. We recommend that you keep a log of what settings were changed and when they were changed.
Save Button
Use the Save button to save changes.
Cancel Button
Use the Cancel button to ignore changes.
Next, learn how to manage readers in the ATRIUM software.
