How to scan fingerprints on ievo readers

Whether registering a user’s fingerprint for the first time, or using an active ievo system, scanning a finger follows the same general principles. The same principles can be applied to any ievo fingerprint devices.

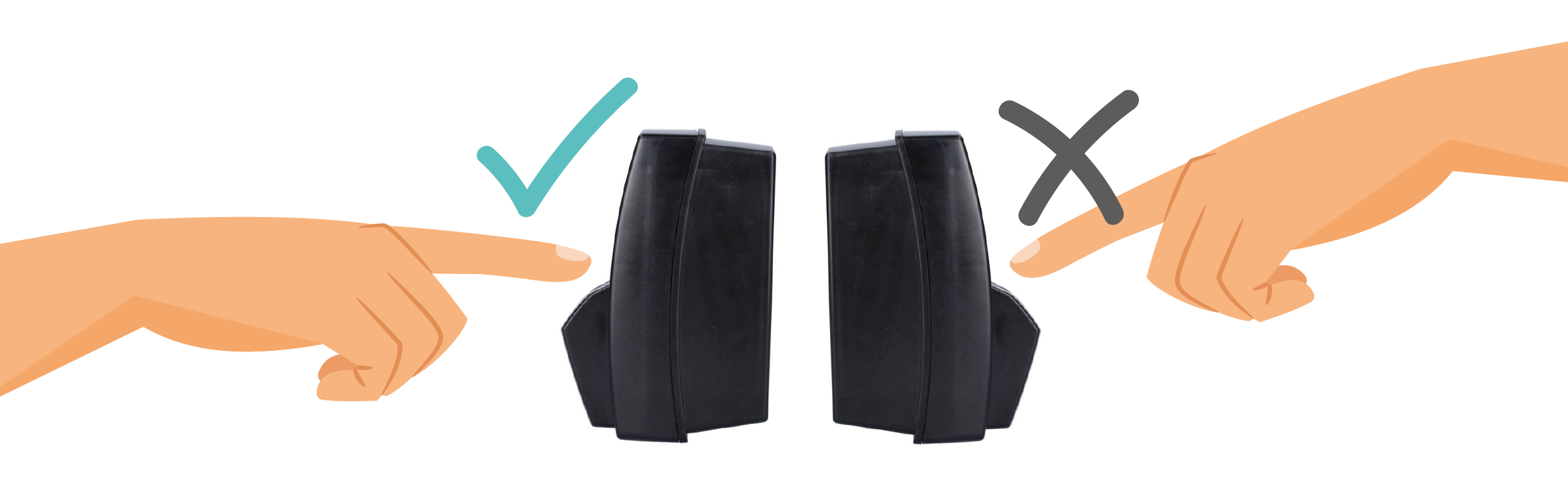

To start the process, place your finger on an active fingerprint scanner's sensor plate. The plate should light up as you approach the reader with your finger. Ensure that you approach the reader from directly in front, not from above. This allows the sensor to detect your finger and activate the scanner plate.

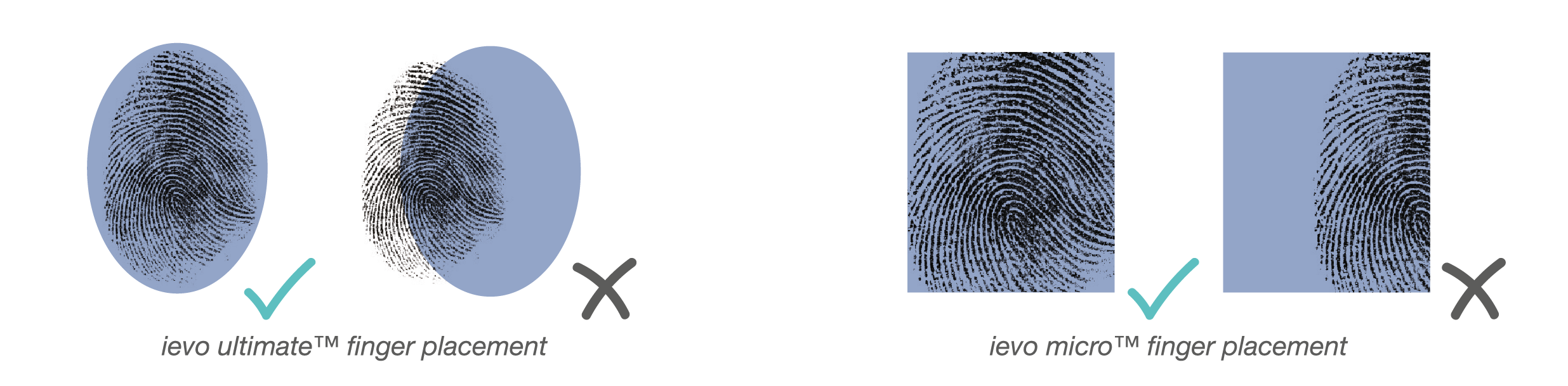

Ensure that your finger covers the whole surface area of the sensor plate to prevent any unnecessary light flooding the sensor. Keep your finger still as the sensor scans the fingerprint (indicated by a white light emitting from the sensor) and remove your finger once the sensor scan has finished.

It is vital that you keep your finger still during the scanning process to ensure there is no distortion in the image, which could lead to recognition issues.

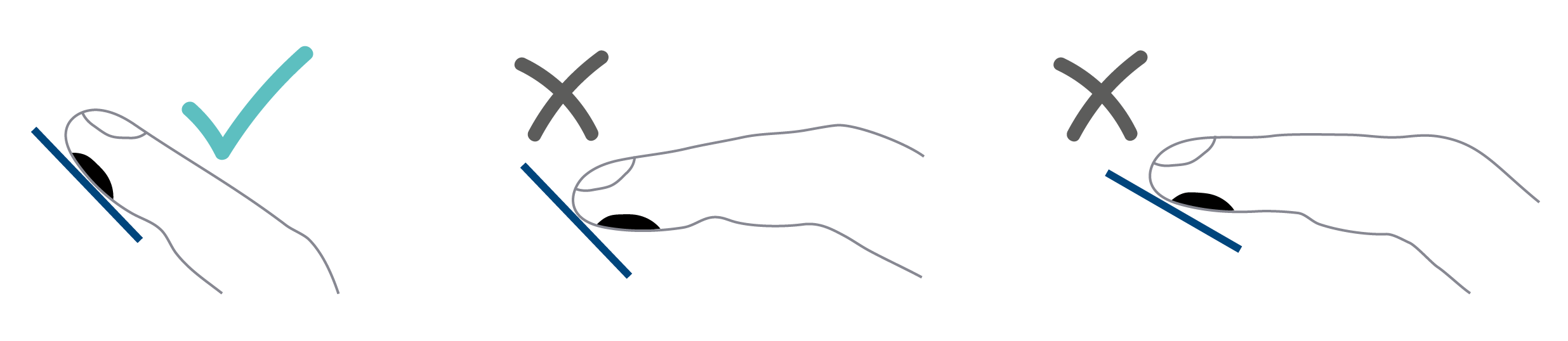

The better quality the scan, the faster the process for gaining access. Whenever you are scanning a finger, ensure the finger is straight and flat against the sensor. Do not use a finger tip or bend the finger, as this can disrupt or distort the scanned image used to generate data for fast and reliable identification matching.
